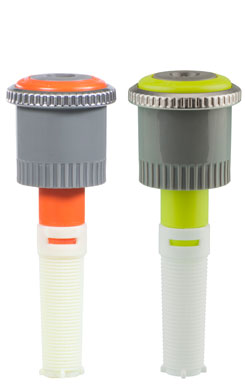

MP800SR
Water small spaces more efficiently with a new series of MP Rotator sprinkler systems designed for distances from 6' (1.8 m) to 12' (3.6 m).
The SR series offers the benefits of multi-stream multi-trajectory (MSMT) technology in areas smaller than ever before possible. The new MP800SR provides the same excellent wind-resistance, high distribution uniformity, double-pop nozzle protector, and extreme resilience to dirt and debris found in standard MP Rotators. Realize water savings for tight spaces. The MP800SR delivers water at a low application rate of 0.8 in/hr, less than half that of traditional spray nozzles.
The MP800SR-90 and MP800SR-360 have a 0.8” per hour application rate and are not designed to operate on the same zones as other MP Rotator sprinklers. They do not have "matched precipitation".
- Recommended operating pressure: 40 PSI (2.8 bar)
- Recommended to use with clean water
- MP800SR-90 uses a 60 mesh built-in nozzle filter
- MP800SR-360 uses a 40 mesh built in nozzle filter
- Use 150 mesh pre-filter arrangement
- Hunter ACZ, PCZ, or ICZ drip filters are a great solution for zone-specific MP800SR arrangements
- Rotator® Technology proven in demanding agricultural conditions since 1987
- One moving part
- Patented "double-pop" flushes on start-up and shut-down without increasing spray head flow-by
- Easy arc adjustment
- Easy radius adjustment - up to 25%
- No need to change nozzle to maintain matched precipitation
- Removable inlet filter for easy cleaning
MP1000
The MP1000 Rotator is a 8-15' (2.5-4.6 meter) sprinkler system(including the 25% radius reduction* capability) that fits any conventional spray head body or shrub adapter.
- Multi-trajectory rotating streams provide unmatched uniformity
- Automatic matched precipitation even after arc & radius adjustment
- Low application rate reduces runoff on slopes & tight soils
- Rotator® Technology proven in demanding agricultural conditions since 1987
- One moving part
- Patented "double-pop" flushes on start-up and shut-down without increasing spray head flow-by
- Easy arc adjustment
- Easy radius adjustment - up to 25%
- No need to change nozzle to maintain matched precipitation
- Removable inlet filter for easy cleaning

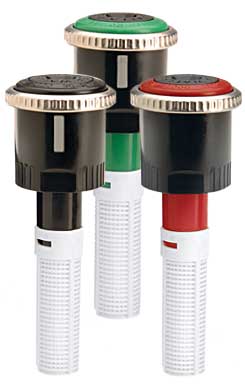

MP2000
The MP2000 Rotator is a 13-21' (4-6.4 meter) sprinkler (including the 25% radius reduction* capability) that fits any conventional spray head body or shrub adapter.
- Multi-trajectory rotating streams provide unmatched uniformity
- Automatic matched precipitation even after arc & radius adjustment
- Low application rate reduces runoff on slopes & tight soils
- Rotator® Technology proven in demanding agricultural conditions since 1987
- One moving part
- Patented "double-pop" flushes on start-up and shut-down without increasing spray head flow-by
- Easy arc adjustment
- Easy radius adjustment - up to 25%
- No need to change nozzle to maintain matched precipitation
- Removable inlet filter for easy cleaning

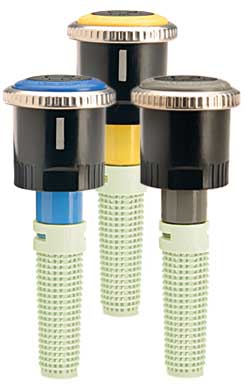

MP3000
The MP3000 Rotator is a 22-30' (6.7-9.1 meter) sprinkler (including the 25% radius reduction* capability) that fits any conventional spray head body or shrub adapter.
- Multi-trajectory rotating streams provide unmatched uniformity
- Automatic matched precipitation even after arc & radius adjustment
- Low application rate reduces runoff on slopes & tight soils
- Rotator® Technology proven in demanding agricultural conditions since 1987
- One moving part
- Patented "double-pop" flushes on start-up and shut-down without increasing spray head flow-by
- Easy arc adjustment
- Easy radius adjustment - up to 25%
- No need to change nozzle to maintain matched precipitation
- Removable inlet filter for easy cleaning

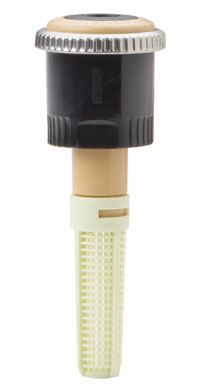

MP3500
The MP3500 Rotator is a 31-35' (9.4-10.7 meter) sprinkler (including the 25% radius reduction* capability) that fits any conventional spray head body or shrub adapter.
- Multi-trajectory rotating streams provide unmatched uniformity
- Automatic matched precipitation even after arc & radius adjustment
- Low application rate reduces runoff on slopes & tight soils
- Rotator® Technology proven in demanding agricultural conditions since 1987
- One moving part
- Patented "double-pop" flushes on start-up and shut-down without increasing spray head flow-by
- Easy arc adjustment
- Easy radius adjustment - up to 25%
- No need to change nozzle to maintain matched precipitation
- Removable inlet filter for easy cleaning

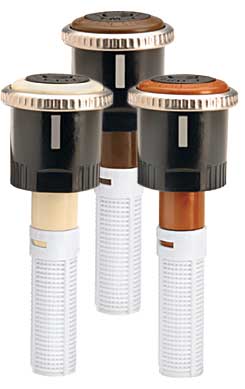

MP Strips
The three new MP Strip models of the MP Rotator family offer an exciting alternative to conventional spray heads to meet the challenges of irrigating strip areas. Strip models offer improved uniformity and excellent wind-fighting ability. The reduced flow rate compared to conventional sprays makes longer runs and/or fewer zones possible.
The MP Left and Right Strips irrigate an area 5’ x 15’ (1.5 m x 4.6 m) at 30 PSI (2.1 bar) at full radius. Flow rate at rectangular spacing = .19 GPM (.72 LPM). When the radius is reduced the pattern is 4’ x 12’ (1.2 m x 3.7 m). Flow rate at rectangular spacing = .14 GPM (.53 LPM).
The MP Side Strip irrigates a strip 5’ x 30’ (1.5 m x 9.1 m) at 30 PSI (2.1 bar) at full radius. Flow rate at rectangular spacing = .38 GPM (1.44 LPM). When the radius is reduced the pattern is 4’ x 24’ (1.2 m x 7.3 m). Flow rate at rectangular spacing = .27 GPM (1.02 LPM).
- Multi-trajectory rotating streams provide unmatched uniformity
- Automatic matched precipitation even after arc & radius adjustment
- Low application rate reduces runoff on slopes & tight soils
- Rotator® Technology proven in demanding agricultural conditions since 1987
- One moving part
- Patented "double-pop" flushes on start-up and shut-down without increasing spray head flow-by
- Easy arc adjustment
- Easy radius adjustment - up to 25%
- No need to change nozzle to maintain matched precipitation
- Removable inlet filter for easy cleaning
