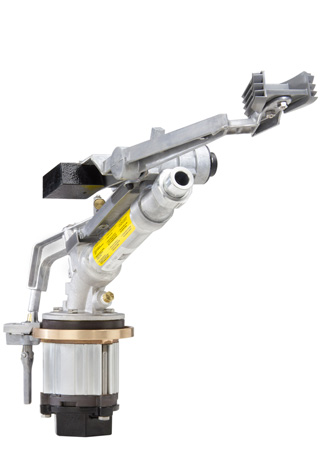

75 Series Nelson Big Gun

The 75 Series is a perfect fit for solid set irrigation, pivot end gun irrigation, sports field applications. The Nelson 75 Series Big Gun comes as a Full (21° or 24° trajectory) or Part Circle (18° [HD only], 21°, 24°, or 43° trajectory) sprinkler with the Taper Ring Nozzle.

HD Lower Bearing, 12° Wedge Kit, Counterbalance Kit, Stream Straightener Vane. Can be fitted to a QC Valve or 2” 800 Series Control Valve.
1 1/2” or 2” FNPT or FBSP ANSI/DIN Nelson or Euro Flange.
30-160 GPM (6.8-36.3 M³/H)
25-80 PSI (1.75-6 Kg/cm²)

100 Series Big Gun Nelson

100 Series Nelson Big Gun

The 100 series is a perfect fit for solid set irrigation, pivot end gun irrigation, dust suppression and sports field applications. Anodized or Powder Coated units are available, which makes this a great option for mining or waste water applications.

The Nelson 100 Series Big Gun comes as a Full or Part Circle sprinkler with an 18°, 21°, 24°, or 43° trajectory (or 15°- 45° adjustable trajectory). Taper, Taper Ring, or Taper Bore Nozzles are available (TR not available for SRNV).

The SRNV100 is the field-proven SR100 with a nozzle valve incorporated. This is a great product that solves many center pivot problems: you can get extra acreage, flush out the system when needed and with no in-line valve there is no friction loss, no turbulence and no plugging.

Low-Pressure Drive Vane Kit, Counterbalance Kit, Secondary Nozzle Kit, 12° Wedge Kit and the Stream Straightener Vane. Can be fitted to a QC Valve or 2” 800 Series Control Valve (QC not available for SRNV100).
2” FNPT or FBSP, 2 1/2” FNPT ANSI/DIN, Nelson or Euro Flange for the F100 and SR100 - and the 2” FNPT or FBSP for SRNV100.
50-300 GPM (10/70 M³/H)
40-110 PSI (3.5-8 Kg/cm²)

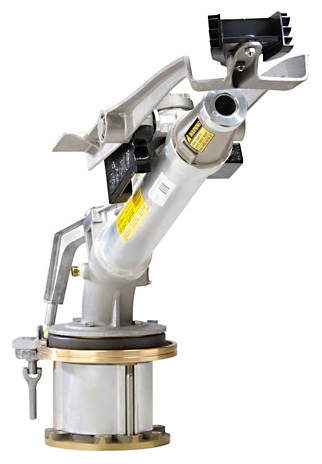

Nelson 150 Series Big Gun

150 Series Nelson Big Gun

The 150 series is a perfect fit for solid set irrigation, traveler irrigation and dust suppression. Anodized, Powder Coated or Stainless Steel units are available, which makes this a great option for mining or wastewater applications.

The Nelson 150 Series Big Gun comes as a Full Circle (21° or 24° trajectory), or Part Circle (21°, 24°, 27°, 43°, or 15°-45° adjustable trajectory) sprinkler. Taper, Taper Ring, or Taper Bore Nozzles are available.

Counterbalance Kit, Secondary Nozzle Kit, and Stream Straightener Vane. There is substantial thrust on a riser, so use a 3” valve minimum.
Nelson, Euro or ANSI/DIN Flange (Also, Nelson Flange to Female Adapters).
100-550 GPM (23-150 M³/H)
50-120 PSI (4-9 Kg/cm²)

200 Series Big Gun Nelson Sprinkler Heads

200 Series Nelson Big Gun

The 200 series is a perfect fit for reclaimed water and other applications where maximum flow is desired. Anodized or Powder Coated units are available.

The Nelson 200 Series Big Gun comes as a Full or Part Circle sprinkler with a 21°, 24°, or 27° trajectory. Taper Bore or Ring Nozzles are available.

Secondary Nozzle Kit (standard) and 12° Wedge Kit (SR200 only). There is substantial thrust on a riser, so use 4” valve minimum.
Nelson, Euro, or ANSI/DIN Flange (Also, Nelson Flange–to-Female Adapters).
250-1200 GPM (55-275 M³/H)
60-130 PSI (4-9 Kg/cm²)
