Recognized as a world leader in quality and innovation, Nelson Irrigation Corporation is focused on providing exceptional products – including Rotator® sprinklers, pressure regulators, control valves and Big Gun® sprinklers – for agricultural and industrial applications.

Nelson products have a solid reputation due to a rigorous quality assurance program and the company’s enduring commitment to workmanship and customer service. State-of-the-art technologies, such as CNC machinery, robotic welding, plastic injection molding and automated assembly, provide a consistently superior product. A dedicated R&D team works closely with the customer at all levels and develops new products while also improving existing products. Nelson products are supported worldwide by an experienced network of distributors and dealers.

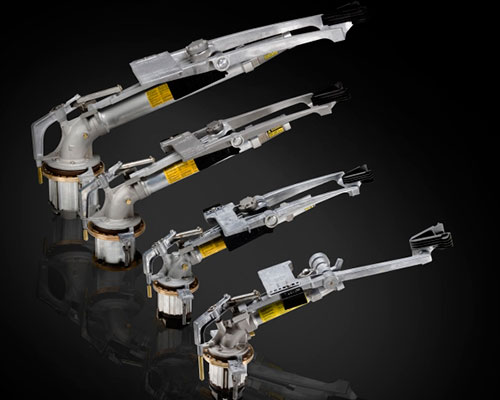

Due to the rugged durability of the Nelson Big Gun sprinkler it has been used in the extreme environs of mining, time and time again. Nelson’s Big Gun – the original Big Gun with over 40 years in the field – is preferred because of the ability to move a large amount of water in a short time. The large nozzle is less likely to plug and filtration requirements are minimal. With completely sealed ball bearings and anodized, powder-coated, or stainless steel options, the Nelson Big Gun sprinkler is the preferred choice for tough applications. Various trajectories and accessories are available for a variety of needs. Using Nelson Big Gun sprinklers in conjunction with Nelson 800 Series control valves and the TWIG™ control system provides a complementary design that uniquely improves efficiency and reliability. The 800 Series control valves have a field-proven record of success operating under Nelson Big Gun sprinklers in many tough environments, including mining dust suppression, feedlot dust suppression and waste water applications. In some situations automation may be desired for maximum control. Nelson’s TWIG control system is simple, reliable, reduces labor requirements and allows you to put the right amount of water where you need it most.
No other large sprinkler has sealed ball bearings. Most other large sprinklers use bushings instead of bearings. The water from tailings from rock crushing contains aggressive particles that will cause accelerated wear in bushings and unprotected bearings. The Nelson Big Guns use sealed ball bearings that provide a much longer product life. For some applications we recommend an enhanced design that provides even more protection. These enhancements include a shroud over the lower bearing unit that prevents water and deposits from accumulating around the brake ring surface and getting into the upper seal. The lower seal has an enhanced design due to changes in the geometry of the parts and a Teflon impregnated spacer.
The mining environment is notoriously unkind to certain materials. It’s important to make careful considerations to select the right sprinkler dependent on site water and particulate chemistry. Nelson Big Gun material options include anodized, powder coated or stainless steel.

  • STANDARD for PH range of 4.5-8.5. Big Gun is made from aluminum, yellow and red brass, 18-8 stainless steel, and engineering-grade plastics; seals and o-rings are buna-nitrite rubber.
  • ANODIZED for PH range of 4.5-8.5. Designed for industrial dust suppression applications where mildly corrosive water remains infrequently stagnant in the Big Gun during shutdown. All aluminum components have been class 1 brass color anodized; anodizing adds a thicker aluminum oxide layer than occurs naturally.
  • POWDER COATED for PH range of 4.5-8.5. Designed for industrial dust suppression. Dust mixes with water and forms a caustic paste on exterior of sprinkler. Polyester powder coating increases life of sprinkler and minimizes pitting corrosion. Coating is in the flow path as well as on all exterior surfaces. Same construction as anodized Big Gun; a polyester powder coating is then applied inside and out to improve corrosion resistance.
  • STAINLESS STEEL for PH range of 0-14. Designed for use with sodium hydroxide, sulfuric acid and sodium cyanide solutions used in mining heap leach and process waters. Big Gun is made from 316 series stainless steel; all plastics, o-rings, and seal materials have been chosen to be compatible with mining and industrial process fluids.
Mounting design must always consider thrust force and drive arm action as well as wind distortion. One basic spacing rule of thumb is to have 100% overlap of the spray pattern. For example a sprinkler that throws 100ft (30.5m) radius would be spaced not more than 100ft (30.5m) apart. Doing this will give some assurance for adequate coverage of water in windy conditions. Caution: if freezing conditions are to occur then plan for a method to drain water from all above ground pipe, stand pipes and risers.

Proper air and water control are essential to an efficient irrigation system. Improper hydraulic design of your irrigation system can lead to pressure fluctuations and water hammer, which can damage pumps, break pipes, and decrease flow efficiency. For a functional, efficient system that you can depend on, install Nelson control valves.

There are many benefits to installing an 800 Series control valve directly beneath the Big Gun. The Big Gun / valve combo incorporates automatic drains, which are very important. Experience has shown us that corrosive water becomes much more corrosive when it becomes stagnant (loses all oxygen). The automatic drain allows the water to empty out of the Big Guns after each operation. The Nelson 800 Series control valve has low friction loss. It also has a straight through design which minimizes turbulence in the flow path. Angle or weir valves turn the water through 90° even though the valve inlet and exit are in line. These valves create turbulence in the flow path which can reduce the radius of throw.

  • Big Gun Coal Mine
  • Copper Mine Dust Suppression
  • Nelson Coal Mine Big Gun Sprinklers

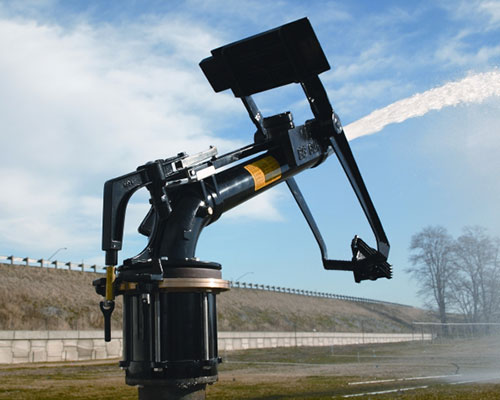

  • Big Gun Corrosive sprinkler head

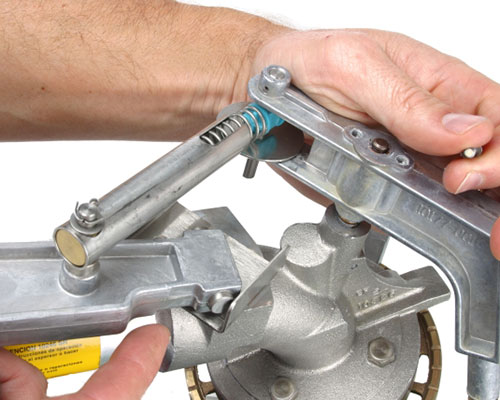

  • Nelson big gun repair
